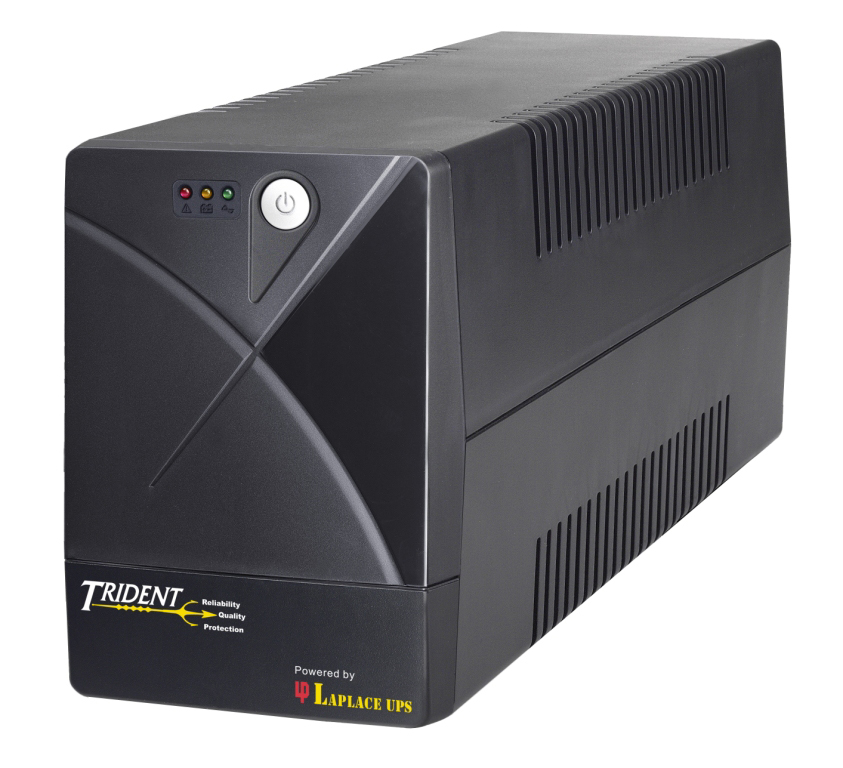

UPS LAPLACE TRIDENT 1300



    Features UPS Laplace Raptor  FX 1300

• Compact Design
• Protects data loss from power failure
• Built-in fast charger
• Cold start function
• Off-mode auto charging
• Wide range AVR enhances voltage regulation
• Surge & Lightning protection
• Modem/Phone Line surge protection

Model	1300 VA	Description
Input	Voltage	220 Vac
	Voltage Range	140Vac - 290Vac
	Frequency Range	50 Hz
Output	Voltage Regulation (Battery Mode)	+/- 10 %
	Frequency Range (Battery Mode)	50 Hz +/- 1Hz
	Transfer time	Typical 2 - 6 ms
	Waveform (Battery Mode)	Simulated Sine Wave
Battery	Battery type & Number	12V/7AH X 2
	Typical Recharge Time	6 hours recover to 90% capacity
Indicator	AC Mode	Green Lighting
	Batere Mode	Yellow Flashing
	Fault	Red Flashing
Protection	Full Protection	Overload, Discharge, Overcharge, Surge & Spike Protection
Alarm	Battery mode	Sounding every 10 seconds
	Low Battery	Sounding every second
	Overload	Sounding every 0.5 second
	Fault	Continuous sounding
Physical	Dimension (DxWxH, mm)	320 x 130 x 182
	Net Weight (Kg)	7.8 Kg
Operating Environment	Humidity	0-90% RH @ 0 - 40 degree celcius (non condensing)
	Noise Level	Less then 40 dB



TABEL BACKUP :

1 PC + 1 LCD 17" = 30 MENIT

2 PC + 2 LCD  17" LCD = 11 MENIT

3PC + 3 LCD 17" LCD = 4 MENIT

Dimensi UPS LAPLACE TRIDENT 1300 VA adalah 320 x 130 x 182 mm

Dimensi Dus UPS LAPLACE TRIDENT 1300 VA adalah 400 x 200 x 270 mm

Kapasitas beban maksimum yang boleh terkoneksi ke UPS LAPLACE TRIDENT 1300 VA adalah 1300 VA / 780 W

Bentuk Gelombang ( Wave form ) UPS LAPLACE TRIDENT 1300 VA adalah Simulated Sinewave.
